Winchester射頻微波BMA系列連接器
發布時間：2021-12-29 17:19:04 瀏覽：2120
在大多數應用程序中，螺旋式射頻連接有時用起來很短，甚至是無法使用：例如，含有多個射頻連接點的面板、卡片或插件。在這種情況下，射頻連接器之間的間距需要設定得非常小，造成螺母無法承載；或者，由于需要插入狹窄的槽，卡片/組合體有時無法操作。出于這些原因，研發了一種推入式射頻連接器，也稱為盲匹配射頻連接器。

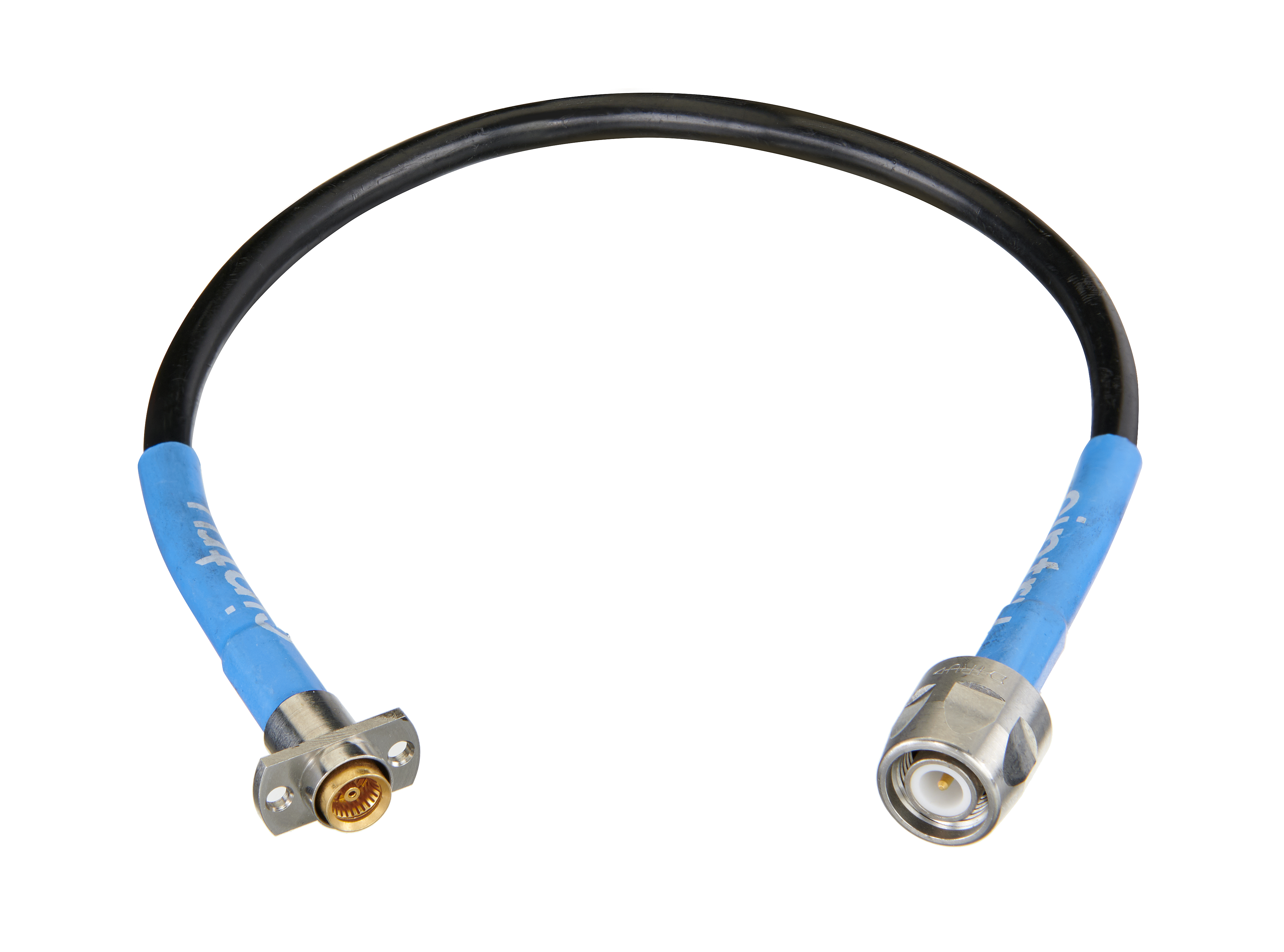

BMA系列連接器是一種盲匹配的射頻同軸連接器。選用新型彈簧結構，接觸安全可靠，機械電氣性能優越。BMA系列連接器優勢是軸向和徑向可浮動，單個射頻連接器占用空間小，重量較輕，廣泛應用于機箱和機柜的控制模塊。其優勢是：體積小、接觸安全可靠、機械電氣性能優越、連接方便等。
Winchester是一家高可靠性連接器制造廠商，具備AS9100和AS7003航空航天質量體系認證，為全球客戶提供同軸線纜、微波連接器產品。其產品被廣泛應用于軍用、航空航天、通信測試領域。
深圳市立維創展科技有限公司，授權代理Winchester連接器產品，歡迎咨詢。
詳情了解Winchester請點擊：/brand/79.html
或聯系我們的銷售工程師：0755-83642657 QQ: 2295048674
Part # | Description | Max Frequency |
TRU-7415-GPU | BMA(m) to SMA(f) Adapter, Bulkhead SNAP-IN | 18 GHz |
362-974-0630H | BMA Plug | 18 GHz |
363-060-0040H | BMA PCB Mount Receptacle | 18 GHz |
363-060-0042H | BMA PCB Mount Receptacle | 18 GHz |
361-595-1410H | BMA Bulkhead Jack | 18 GHz |
363-500-0850H | BMA Receptacle | 18 GHz |
361-900-0630H | BMA Receptacle | 18 GHz |
363-500-1411R | BMA Receptacle w/ Hex Housing | 18 GHz |
361-900-1160H | BMA Receptacle | 18 GHz |
363-500-9000R | BMA Receptacle w/ Float Plate | 18 GHz |
361-922-0630H | BMA Receptacle (Snap-Fit) | 18 GHz |
363-522-0850H | BMA Receptacle (Snap-Fit) | 18 GHz |
361-994-0630H | BMA Two-Hole Flange Mount Floating Receptacle | 18 GHz |
363-522-0851H | BMA Receptacle (Snap-Fit) | 18 GHz |
361-994-0631H | BMA Two-Hole Flange Mount Floating Receptacle | 18 GHz |
363-522-1410H | BMA Receptacle (Snap-Fit) | 18 GHz |
361-995-0630H | BMA Bulkhead Jack | 18 GHz |
363-522-9000R | BMA Receptacle (Snap-Fit) | 18 GHz |
362-060-0040H | BMA PCB Mount Plug | 18 GHz |
363-900-0630H | BMA Receptacle | 18 GHz |
362-074-6040H | BMA PCB Mount Bulkhead Plug | 18 GHz |
363-900-0752R | BMA Receptacle w/ Hex Housing | 18 GHz |
362-500-0850H | BMA Plug | 18 GHz |
363-900-2401R | BMA Receptacle w/ Float Plate | 18 GHz |
362-574-0850H | BMA Bulkhead Plug | 18 GHz |
363-922-0630H | BMA Receptacle (Snap-Fit) | 18 GHz |
362-574-1410H | BMA Bulkhead Plug | 18 GHz |
363-922-2401R | BMA Receptacle (Snap-Fit) | 18 GHz |
362-900-0630H | BMA Plug | 18 GHz |
360-500-1410H | BMA Plug | 18 GHz |
361-594-0850H | BMA Two-Hole Flange Mount Floating Receptacle | 18 GHz |
360-574-0850H | BMA Bulkhead Plug | 18 GHz |
361-594-1410H | BMA Two-Hole Flange Mount Floating Receptacle | 18 GHz |
360-574-1410H | BMA Bulkhead Plug | 18 GHz |
361-595-0850H | BMA Bulkhead Jack | 18 GHz |
360-574-2501R | BMA Bulkhead Plug | 18 GHz |
360-900-0630H | BMA Plug | 18 GHz |
360-974-0630H | BMA Plug | 18 GHz |
360-974-0632R | BMA Straight Bulkhead Plug | 18 GHz |
361-060-0040H | BMA PCB Mount Receptacle | 18 GHz |
361-065-0040H | BMA Four-Hole Flange Mount Receptacle | 18 GHz |
360-060-0040H | BMA Straight PCB Mount Plug | 18 GHz |
361-066-0040H | BMA Two-Hole Flange Mount Receptacle | 18 GHz |
360-060-0044H | BMA Straight PCB Mount Plug | 18 GHz |
361-099-0040R | BMA Receptacle | 18 GHz |
360-065-0040H | BMA Four-Hole Flange Mount Plug | 18 GHz |
361-500-0850H | BMA Receptacle | 18 GHz |
360-066-0040H | BMA Two-Hole Flange Mount Plug | 18 GHz |
361-500-1410H | BMA Receptacle | 18 GHz |
360-086-0041H | BMA End Launch Plug | 18 GHz |
