美國APD高壓DC/DC模塊電源F112-N100/Y
發布時間：2025-12-16 09:18:24 瀏覽：58

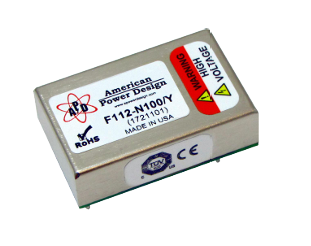

F1 系列是美國 American Power Design(APD) 推出的 1 W 可編程高壓 DC/DC
模塊電源。它把“高壓”與“可編程”做成了一顆只有拇指蓋大小的金屬磚，±100 V 到 ±2 000 V
任意可調，即插即用，是微型高壓方案里的“瑞士軍刀”。
輸入電壓：
5V型號：4.75V–5.25Vdc
12V型號：11.5V–15.5Vdc
輸出精度：<1%(全范圍)
線性調整率：<0.01%(輸入變化時)
負載調整率：<0.05%(負載變化時)
參考電壓：2.048Vdc(5V輸入)或5Vdc(12V輸入)
尺寸：1.1 × 1.75 × 0.5英寸(27.94 × 44.45 × 12.7mm)
重量：1.3盎司(約36.9克)
工作溫度：-55°C至+85°C
封裝：鎳鍍金屬外殼，UL 94V-0環氧樹脂封裝
典型應用
科學儀器：TOF-MS、質譜、光譜、電子顯微鏡、離子源
光電探測：PMT、SiPM、MCP、雪崩二極管偏置
工業：靜電卡盤、靜電噴涂、靜電除塵、壓電疊堆
醫療：實驗室臺式設備(非植入類)
訂購指南

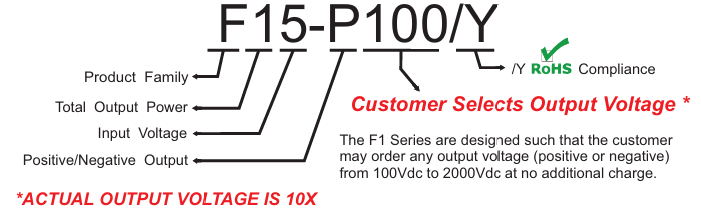

型號參數
| REPRESENTATIVE MODEL LISTING |
| MODEL NUMBER | INPUT CURRENT | OUTPUT SPECIFICATIONS |
| Non-RoHs | RoHs | NO LOAD | FULL LOAD | VOLTAGE | RIPPLE | CURRENT | REGULATION |
| LOAD | LINE |
| F15-P10 | F15-P10/Y | <65 mA | <420 mA | 0 to +100Vdc | <0.05% (50mV p-p) | 0 - 10mA | <0.05% | <0.01% |
| F15-N10 | F15-N10/Y | <65 mA | <420 mA | 0 to -100Vdc | <0.05% (50mV p-p) | 0 - 10mA | <0.05% | <0.01% |
| F15-P20 | F15-P20/Y | <65 mA | <420 mA | 0 to +200Vdc | <0.01% (10mV p-p) | 0 - 5mA | <0.01% | <0.01% |
| F15-N20 | F15-N20/Y | <65 mA | <420 mA | 0 to -200Vdc | <0.01% (10mV p-p) | 0 - 5mA | <0.005% | <0.003% |
| F15-P30 | F15-P30/Y | <65 mA | <420 mA | 0 to +300Vdc | <0.01% (30mV p-p) | 0 - 3.3mA | <0.005% | <0.003% |
| F15-N30 | F15-N30/Y | <65 mA | <420 mA | 0 to -300Vdc | <0.01% (30mV p-p) | 0 - 3.3mA | <0.005% | <0.003% |
| F15-P50 | F15-P50/Y | <65 mA | <420 mA | 0 to +500Vdc | <0.005% (25mV p-p) | 0 - 2mA | <0.003% | <0.002% |
| F15-N50 | F15-N50/Y | <65 mA | <420 mA | 0 to -500Vdc | <0.005% (25mV p-p) | 0 - 2mA | <0.005% | <0.002% |
| F15-P60 | F15-P60/Y | <65 mA | <420 mA | 0 to +600Vdc | <0.005% (30mV p-p) | 0 - 1.67mA | <0.005% | <0.002% |
| F15-N60 | F15-N60/Y | <65 mA | <420 mA | 0 to -600Vdc | <0.005% (30mV p-p) | 0 - 1.67mA | <0.005% | <0.002% |
| F15-P100 | F15-P100/Y | <65 mA | <420 mA | 0 to +1000Vdc | <0.001% (10mV p-p) | 0 - 1mA | <0.005% | <0.001% |
| F15-N100 | F15-N100/Y | <65 mA | <420 mA | 0 to -1000Vdc | <0.001% (10mV p-p) | 0 - 1mA | <0.005% | <0.001% |
| F15-P125 | F15-P125/Y | <65 mA | <420 mA | 0 to +1250Vdc | <0.001% (12mV p-p) | 0 - 0.8mA | <0.005% | <0.001% |
| F15-N125 | F15-N125/Y | <65 mA | <420 mA | 0 to -1250Vdc | <0.001% (12mV p-p) | 0 - 0.8mA | <0.005% | <0.001% |
| F15-P150 | F15-P150/Y | <155 mA | <550 mA | 0 to +1500Vdc | <0.001% (15mV p-p) | 0 - 0.67mA | <0.005% | <0.001% |
| F15-N150 | F15-N150/Y | <155 mA | <550 mA | 0 to -1500Vdc | <0.001% (15mV p-p) | 0 - 0.57mA | <0.005% | <0.001% |
| F15-P200 | F15-P200/Y | <155 mA | <550 mA | 0 to +2000Vdc | <0.001% (20mV p-p) | 0 - 0.5mA | <0.005% | <0.003% |
| F15-N200 | F15-N200/Y | <155 mA | <550 mA | 0 to -2000Vdc | <0.001% (20mV p-p) | 0 - 0.5 mA | <0.001% | <0.001% |
| F112-P10 | F112-P10/Y | <80 mA | <220 mA | 0 to +100Vdc | <0.05% (50mV p-p) | 0 - 10mA | <0.05% | <0.01% |
| F112-N10 | F112-N10/Y | <80 mA | <220 mA | 0 to -100Vdc | <0.05% (50mV p-p) | 0 - 10mA | <0.05% | <0.01% |
| F112-P20 | F112-P20/Y | <80 mA | <220 mA | 0 to +200Vdc | <0.01% (10mV p-p) | 0 - 5mA | <0.05% | <0.01% |
| F112-N20 | F112-N20/Y | <80 mA | <220 mA | 0 to -200Vdc | <0.01% (10mV p-p) | 0 - 5mA | <0.05% | <0.01% |
| F112-P30 | F112-P30/Y | <80 mA | <220 mA | 0 to +300Vdc | <0.01% (30mV p-p) | 0 - 3.3mA | <0.05% | <0.01% |
| F112-N30 | F112-N30/Y | <80 mA | <220 mA | 0 to -300Vdc | <0.01% (30mV p-p) | 0 - 3.3mA | <0.05% | <0.01% |
| F112-P50 | F112-P50/Y | <80 mA | <220 mA | 0 to +500Vdc | <0.01% (50mV p-p) | 0 - 2mA | <0.01% | <0.01% |
| F112-N50 | F112-N50/Y | <80 mA | <220 mA | 0 to -500Vdc | <0.01% (50mV p-p) | 0 - 2mA | <0.01% | <0.01% |
| F112-P60 | F112-P60/Y | <80 mA | <220 mA | 0 to +600Vdc | <0.01% (60mV p-p) | 0 - 1.67mA | <0.01% | <0.01% |
| F112-N60 | F112-N60/Y | <80 mA | <220 mA | 0 to -600Vdc | <0.01% (60mV p-p) | 0 - 1.67mA | <0.01% | <0.01% |
| F112-P100 | F112-P100/Y | <80 mA | <220 mA | 0 to +1000Vdc | <0.001% (10mV p-p) | 0 - 1mA | <0.005% | <0.001% |
| F112-N100 | F112-N100/Y | <80 mA | <220 mA | 0 to -1000Vdc | <0.001% (10mV p-p) | 0 - 1mA | <0.005% | <0.001% |
| F112-P125 | F112-P125/Y | <80 mA | <220 mA | 0 to +1250Vdc | <0.0005% (6mV p-p) | 0 - 0.8mA | <0.005% | <0.001% |
| F112-N125 | F112-N125/Y | <80 mA | <220 mA | 0 to -1250Vdc | <0.0005% (6mV p-p) | 0 - 0.8mA | <0.005% | <0.001% |
| F112-P150 | F112-P150/Y | <100 mA | <220 mA | 0 to +1500Vdc | <0.001% (15mV p-p) | 0 - 0.67mA | <0.01% | <0.01% |
| F112-N150 | F112-N150/Y | <100 mA | <220 mA | 0 to -1500Vdc | <0.001% (15mV p-p) | 0 - 0.67mA | <0.01% | <0.01% |
| F112-P200 | F112-P200/Y | <100 mA | <220 mA | 0 to +2000Vdc | <0.001% (20mV p-p) | 0 - 0.5mA | <0.01% | <0.01% |
| F112-N200 | F112-N200/Y | <100 mA | <220 mA | 0 to -2000Vdc | <0.001% (20mV p-p) | 0 - 0.5 mA | <0.01% | <0.01% |
深圳市立維創展科技有限公司優勢代理銷售American Power Design(APD)高壓DC/DC轉換器產品，歡迎咨詢了解。
